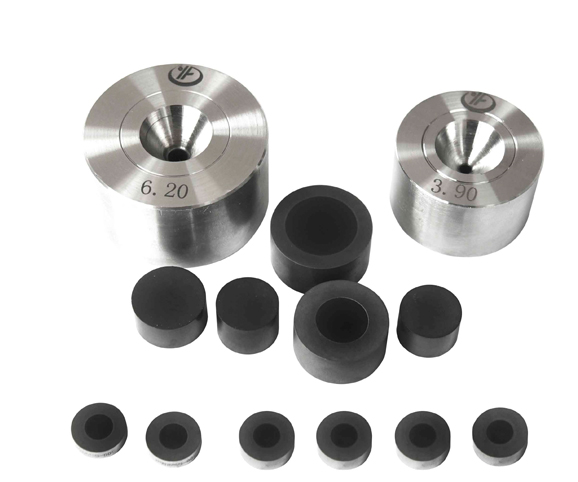

PCD Wire Dies|Polycrystalline Diamond Dies
Author:Wire Drawing Dies Date:September-16-2008 From:Zhenhua Wire Drawing Dies Factory

We have two kinds of PCD Die which made by different cores.

1) Ordinary PCD Die
Ordinary PCD die is mostly applicable to draw low carbon steel wires (iron wires) and the performance-price ratio is very high, for example, Gabarro SA (Spanish company) drawn around 300 tons of low carbon steel wire using our one die (ordinary PCD die with hole diameter 3.4mm). Draw low carbon steel wires, ordinary PCD die is the first choice compare with other PCD dies and tungsten carbide dies.
Features:
 Good wear resistance
 Good surface finish
 High machine efficiency
 Repeatability
 Low cost
 Hole diameters: 0.201 - 9.00 mm

Ordinary PCD Die Blank Specifications

Product code
Diamond diameter (mm)
Diamond thickness (mm)
Maximum recommended hole size (mm)
3015
3.0
1.5
0.5
4020
4.0
2.0
0.8
5025
5.0
2.5
1.1
5030
5.0
3.0
1.3
6040
6.0
4.0
2.0
8040
8.0
4.0
2.6
8060
8.0
6.0
3.3
10060
10.0
6.0
4.1
10080
10.0
8.0
5.1
12080
12.0
8.0
5.6
120100
12.0
10.0
6.1
140100
14.0
10.0
6.6
180100
18.0
10.0
7.1
200120
20.0
12.0
9.0

2) CD Die Blank PCD Die
CD die blank PCD die is mostly used to draw copper, aluminium and stainless steel wires with high quality, its accuracy and highly polished finish are almost same as Compax die blank, only wear resistance is around 90% of Compax die blank, CD blank PCD die is a kind of die with high performance-price ratio to draw high quality copper, aluminium and stainless steel wires.
Features:
 Longer die life
 High wear resistance
 High surface finish
 Accurately sized
 High machine efficiency
 Repeatability
 High wire surface quality
 Hole diameters: 0.100 - 9.00 mm

CD Die Blank Specifications
 Self-supported Die Blanks
Product code
ADDMA code
Diamond diameter (mm)
Diamond thickness (mm)
Maximum recommended hole size (mm)
Grain sizes available
R2510
D6
2.5
1.0
0.5
3, 5, 10, 15, 25
R3215
D12
3.2
1.5
1.0
3, 5, 10, 15, 25
R5225
D15
5.2
2.5
1.5
3, 5, 10, 15, 25
R5235
D18
5.2
3.5
2.0
3, 5, 10, 15, 25
R8040
D21
8.0
4.0
3.3
3, 5, 10, 15, 25
R9853
D24
9.8
5.3
4.6
3, 5, 10, 15, 25
R13085
D27
13.0
8.5
6.1
10, 15, 25
R160120
D30
16.0
12.0
7.6
10, 15, 25
